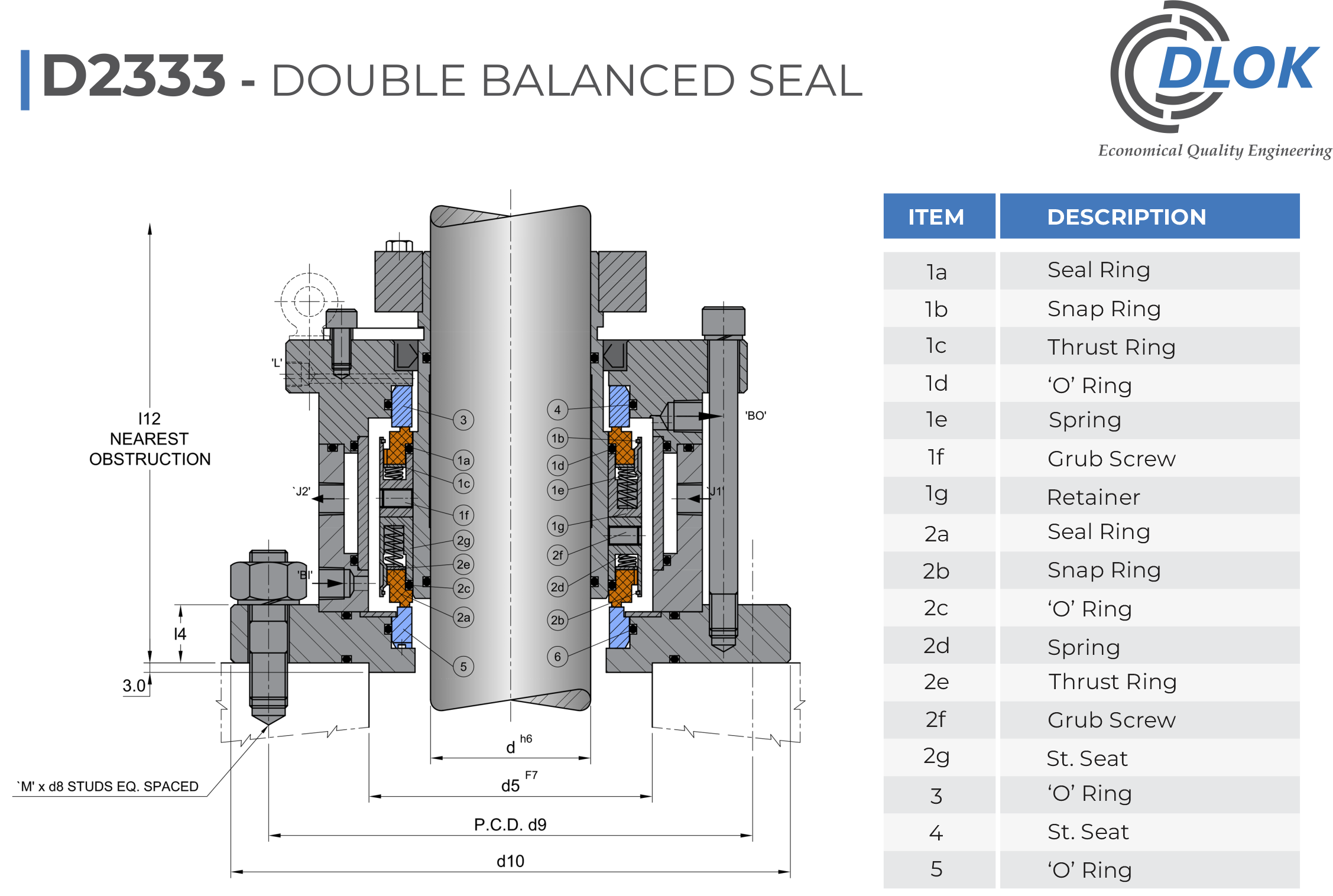

• Double back to back
• Bidirectional
• Pressurized / Non pressurized barrier fluid
• Balanced
• Factory Assembled Cartridge Construction

• Chemical industry
• Reactors
• Pharmaceutical industry
• Petrochemical industry
• Agitators

• Shaft diameter : d : 20mm to 120mm
• Temperature : t : -40°C to 200°C
• Pressure : p : Full Vacuum to 30 bar

Speed : Up to 300 RPM

• Rotary: Carbon,Sic
• Stationary: Silicon Carbide, Tungsten Carbide

SS316, SS304, M. S.

EPDM, PTFE, VITON, FFKM, TTV

1. With Bearing
2. With Jacketed Housing
3. With Heat Trap
