METAL BELLOW SEAL WITH "O"RING DESIGN (D2312)
Home → Mechanical Seals → Pump Seals → Metal Bellow Seal With “O”Ring Design

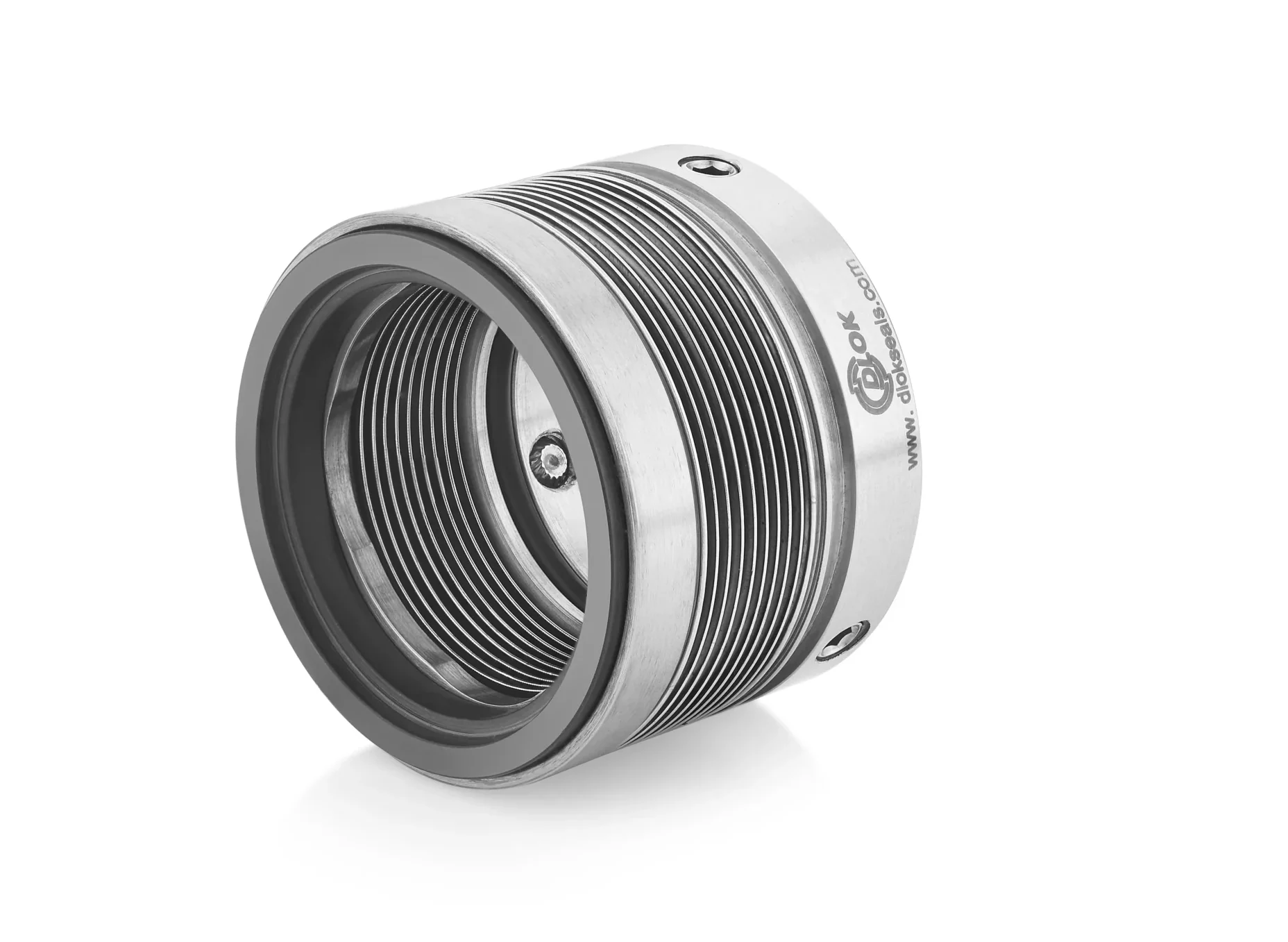

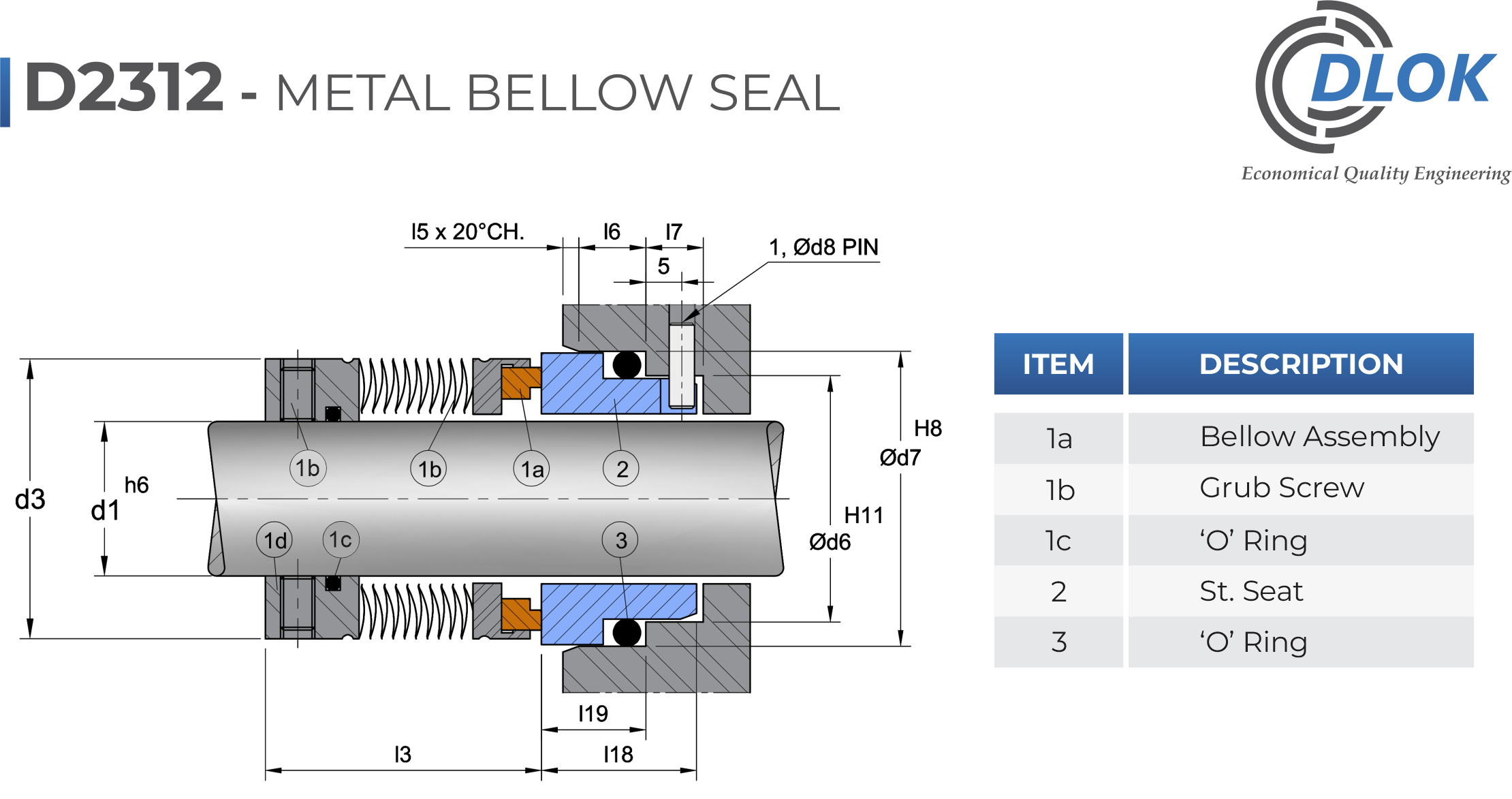

Metal Bellow Seal With "O"Ring Design (D2312)
- Single seal
- Inherently balanced
- Bidirectional rotation
- Welded metal bellows
- Petroleum refineries
- Petrochemicals
- Thermic fluid
- Highly viscous media
- Hot/ Cold media
- Shaft diameter : d : 1.000″ to 4.000″
- Pressure : p : 16 bar(max.)
- Temperature : t : -20°C to 200°C
- Speed : Up to 3000 RPM
Rotary: Carbon, Silicon Carbide, Tungsten Carbide
Stationary: Silicon Carbide, Tungsten Carbide
Bellows: AM 350, Hast-C, Inconel-718
End pieces: SS316, SS316L, Hast-C
PTFE, VITON, FFKM, GFT, EPR
