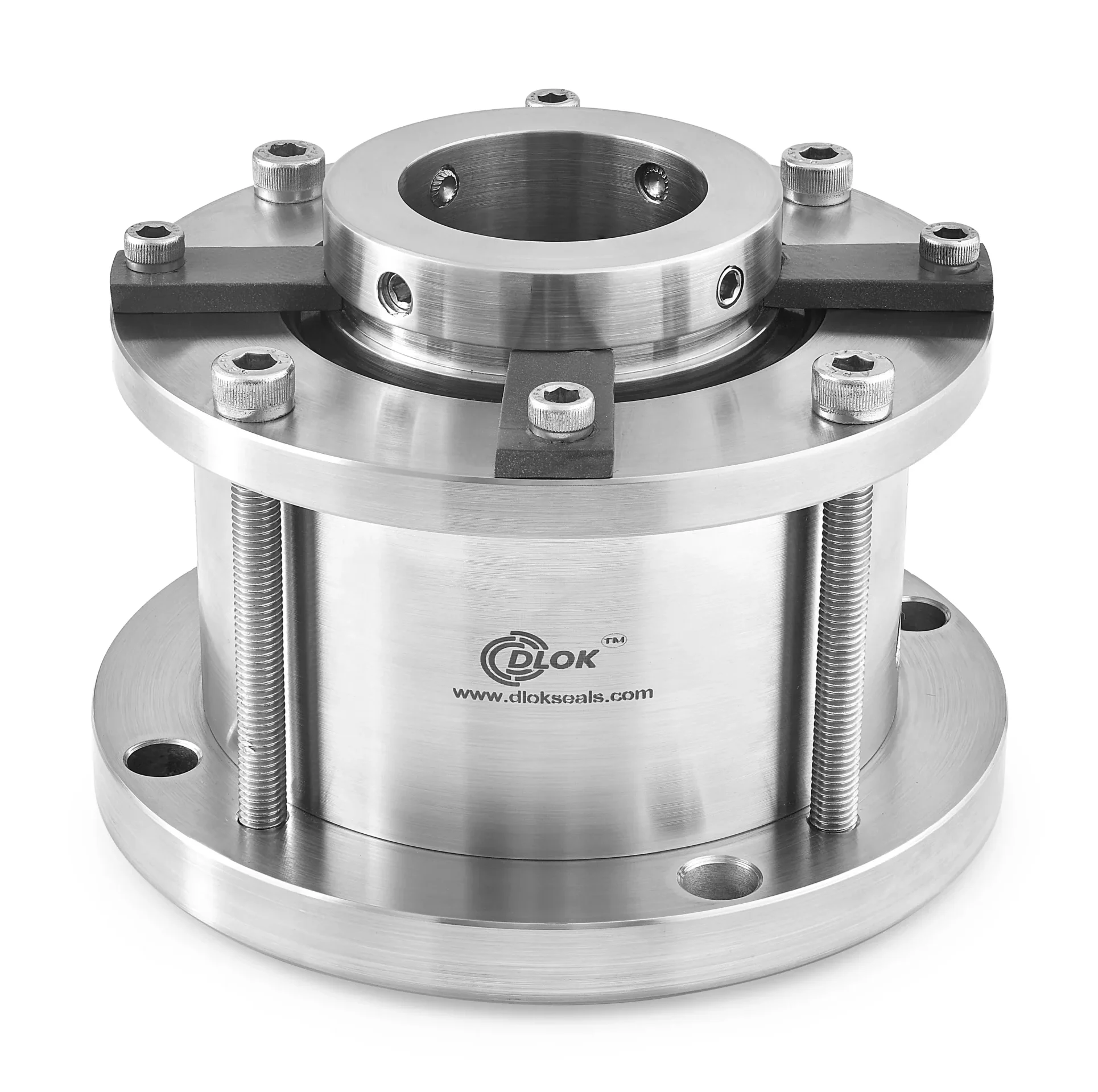

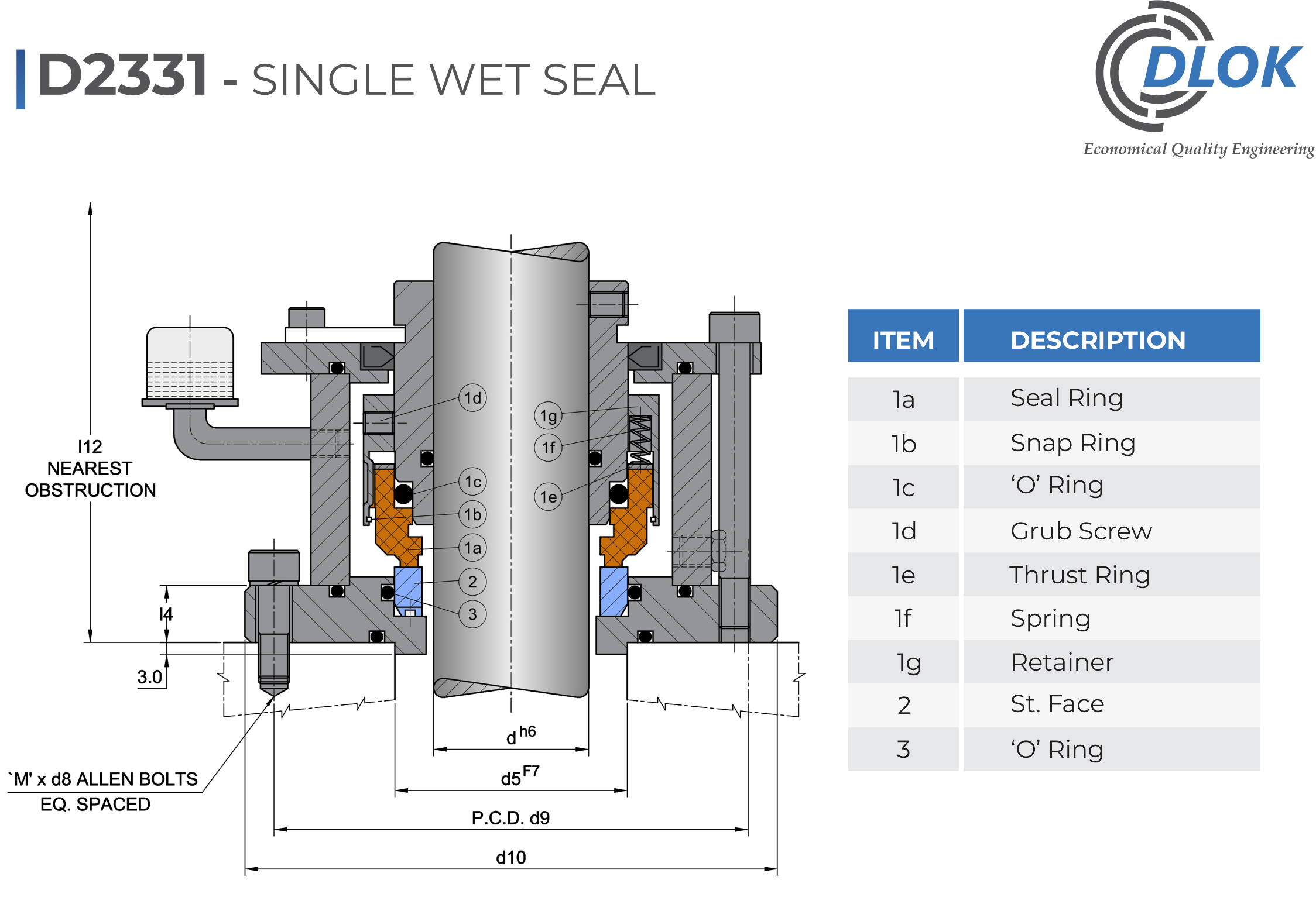

SINGLE WET SEAL – D2331
Home → Agitator Seals → Single Wet Seal
Single Wet Seal – D2331
- Outside mounted
- Reverse balanced
- Bidirectional
- Oil lubricated
- Spring rotary
- For Top Entry Equipment
- Food product
- Chemical industry
- Pharmaceutical industry
- Shaft diameter : d : 20mm to 120mm
- Temperature : t : -20°C to 150°C
- Pressure : p : Full Vacuum to 6 bar
- Speed : Up to 300 RPM
Rotary: Carbon, Silicon Carbide
Stationary: Silicon Carbide, Tungsten Carbide, Ceramic
SS316, SS304
EPDM, VITON, PTFE, FFKM, AFLAS, TTV
- With Bearing
- With Heat Trap
- Metal Free for MSGL Vessels
